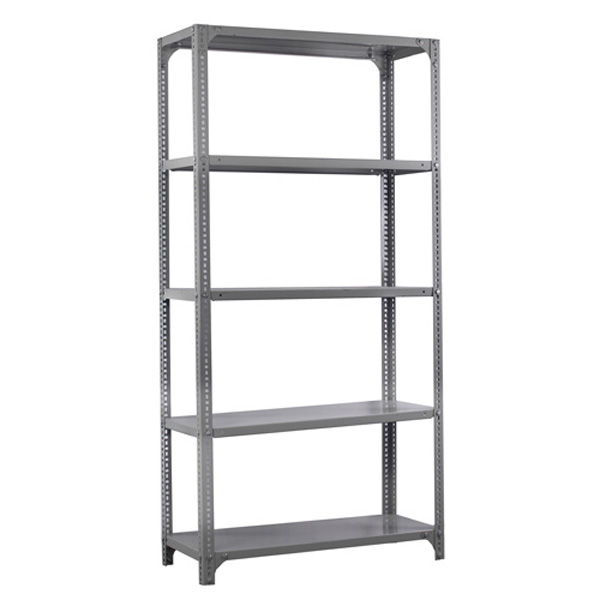

Slotted Angle Storage System is ideal for the manual storage of light loads and even relatively heavy ones.
They are totally dismountable and can be modified or expanded height and lengthwise.
This system covers all storage requirements ranging from totally planned requirements to the most immediate.
Advantages :
* A simple and economic system for the most varied applications.
* Excellent versatility
* Can be used for any inventory
* Direct Access to all products and clear product presentation.
* Good utilization of Warehouse volume
* Quick and Easy to Assemble
* Shelves can be re-adjusted on a 20 mm pitch
* Racks can be modified or expanded height and length wise.
* Idle for manual storage of Light & Medium Loads
Slotted Angle Shelves are designed to be used as economical shelving, racking, workbench, cart, ladder, table or any other type of structure to your own specifications. Multi-tier shelving slotted angle shelving can be adopted to double or treble your storage space. Complete with catwalks and stair cases and railings
They are totally dismountable and can be modified or expanded height and lengthwise.
This system covers all storage requirements ranging from totally planned requirements to the most immediate.
Advantages :
* A simple and economic system for the most varied applications.
* Excellent versatility
* Can be used for any inventory
* Direct Access to all products and clear product presentation.
* Good utilization of Warehouse volume
* Quick and Easy to Assemble
* Shelves can be re-adjusted on a 20 mm pitch
* Racks can be modified or expanded height and length wise.
* Idle for manual storage of Light & Medium Loads
Slotted Angle Shelves are designed to be used as economical shelving, racking, workbench, cart, ladder, table or any other type of structure to your own specifications. Multi-tier shelving slotted angle shelving can be adopted to double or treble your storage space. Complete with catwalks and stair cases and railings

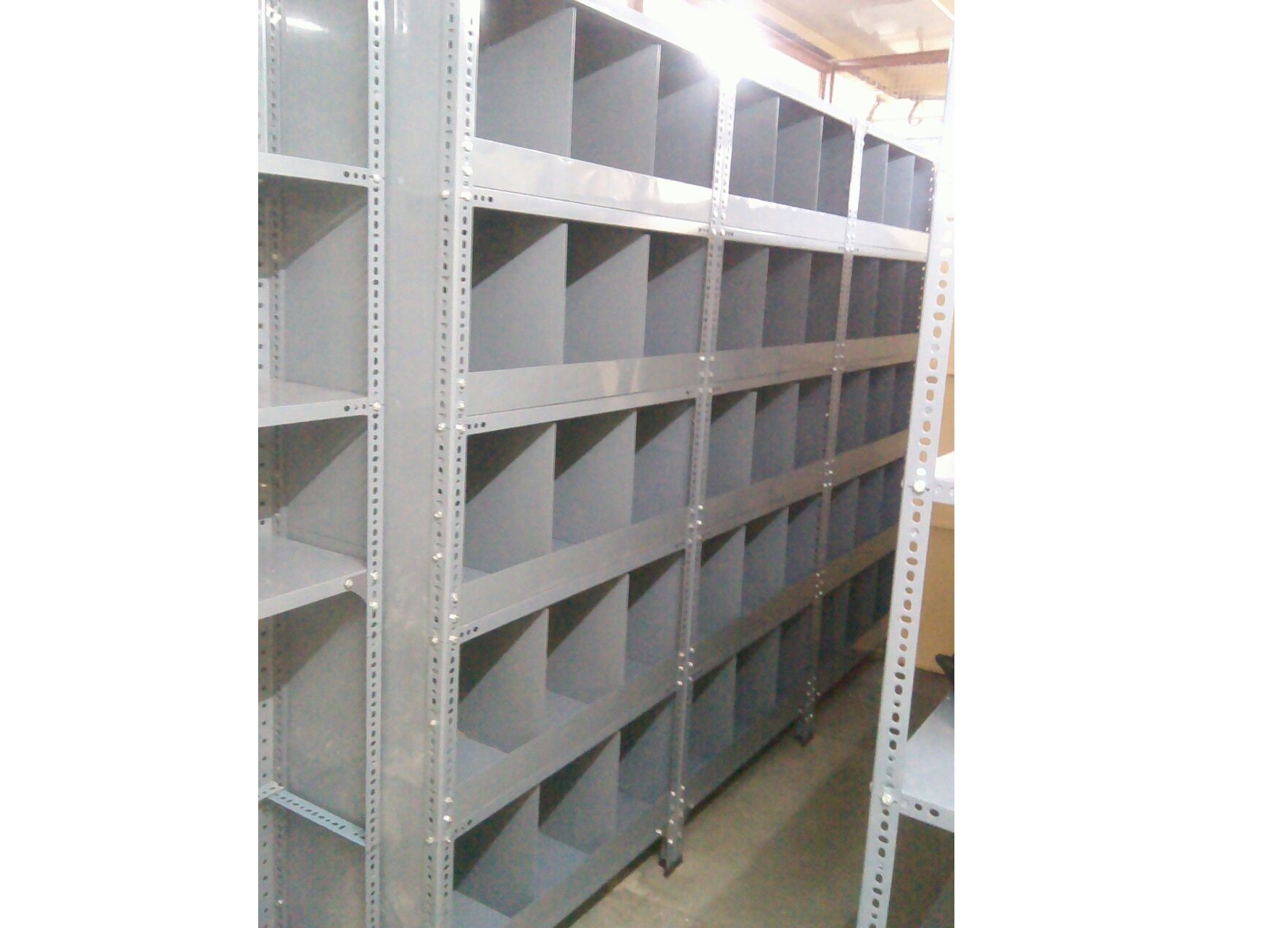

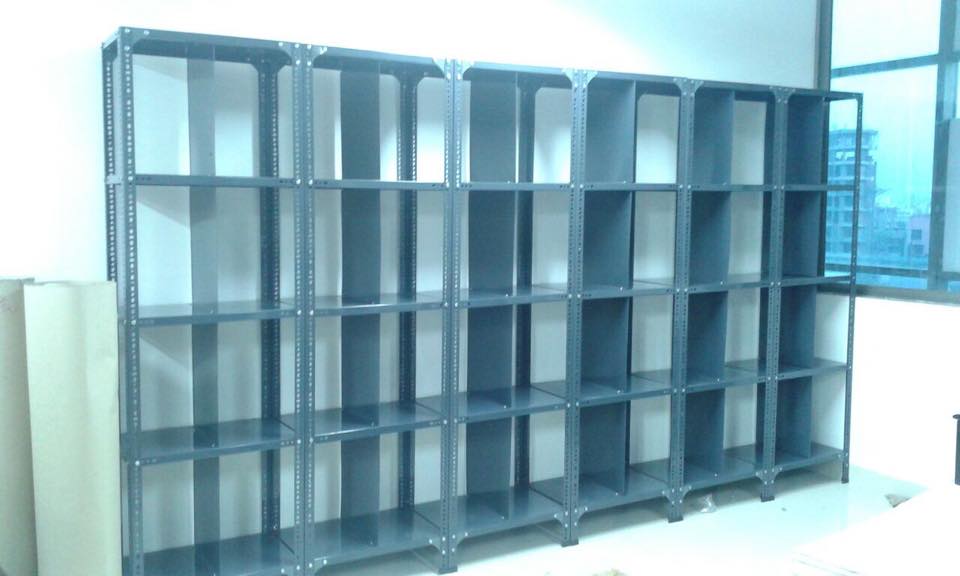

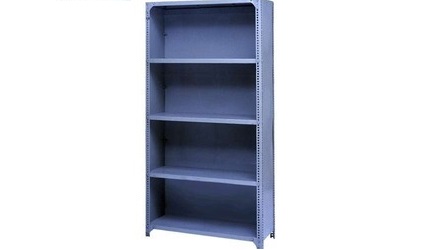

Types of Slotted Angle Racks

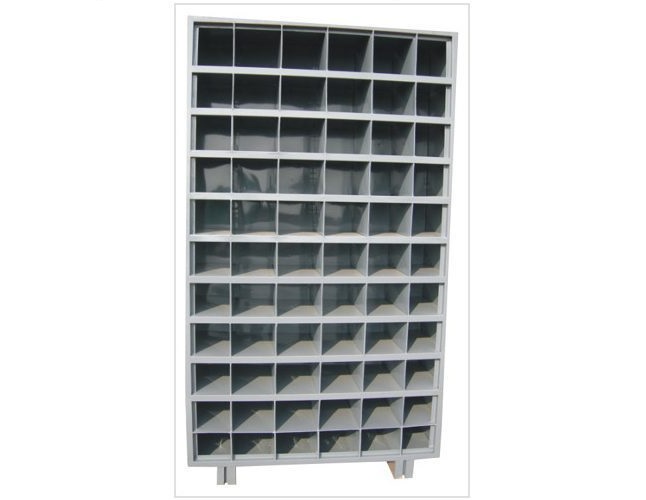

1) Filing Racks2) Storage Racks
3) Heavy Duty Storage Racks
4) Extra Heavy Duty Storage Racks
5) Slotted Angle Framework Racks
6) Multi Tier Slotted Angle Racks
Features
- Economical
- Interchangeability of parts
- Easy Assembly
- Provides clear assess from all sides
- Varieties of decking shelves
- Finished in attractive colors
- Powder coated
BENEFITS
* Uprights with adjustable steel shelves.* No welding or drilling required.
* Do-it-yourself assembly or complete design and installation service available
We offer slotted angles in

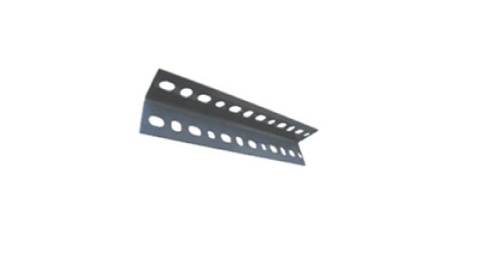

40mmx40mmx1.8 mm,

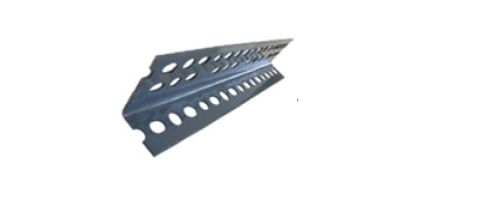

60mmx40mmx2 mm,

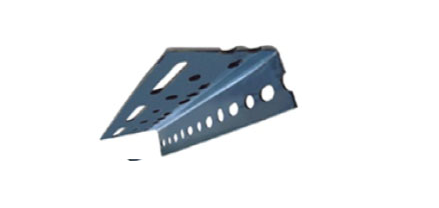

80mmx40mmx2.5 mm
thickness depending upon load bearing capacity. Due to very convenient combination of holes locations the systems can be easily configured to meet any storage demands.
Slotted Angle is the most versatile, time and cost effective construction material available for building carts, ladders, benches, shelving, cases, racks or any other type of structure. Made of either 12 or 14 gauge roll-formed steel. Slotted Angle is finished in Gray Enamel Paint or Corrosion Resistant Powder Coating Finish
Standard color: Grey
Power coated products are available on request.
* Standard Colour : Grey
* Power coated products are available on request.
* Manufactured in various sizes according to customers requirement.
We offer Slotted Channel in 40mmx150mmx40mm & 40mmx75mmx40mm with a given thickness of 1.8mm thick, 2mm thick & 2.5mm thickness, These Slotted Channels are mainly used in making long slotted angles frame work Racks, Heavy duty Mezzanine floors etc…
40mmx40mmx1.8 mm,
60mmx40mmx2 mm,
80mmx40mmx2.5 mm
thickness depending upon load bearing capacity. Due to very convenient combination of holes locations the systems can be easily configured to meet any storage demands.
Slotted Angle is the most versatile, time and cost effective construction material available for building carts, ladders, benches, shelving, cases, racks or any other type of structure. Made of either 12 or 14 gauge roll-formed steel. Slotted Angle is finished in Gray Enamel Paint or Corrosion Resistant Powder Coating Finish
| Model | Height (upto) | Thickness |
| 40mm X 40mm | 10 feet | 1.8 mm |
| 60mm X 40mm | 10 feet | 2.0 mm |
| 80mm X 40mm | 10 feet | 2.5 mm |
Standard color: Grey
Power coated products are available on request.
| Std Size (mm) | Gauge Available | |
| 900 X 300 | 1200 X 300 | 22G ,20G ,19G ,18G ,16G |
| 900 X 375 | 1200 X 375 | |
| 900 X 450 | 1200 X 450 | |
| 900 X 600 | 1200 X 600 | |
* Standard Colour : Grey
* Power coated products are available on request.
* Manufactured in various sizes according to customers requirement.
| Standard Shelf | ||
| Shelf (LxW) mm | Load capacity / Shelf (kg) without Stiffener | Load capacity / Shelf (kg) with Stiffener |
| 900 X 300 900 X 375 900 X 450 900 X 600 | 50 - 110 | 80 - 140 |
| 1150 x 300 1150 x 375 1150 x 450 1150 x 600 | 35- 55 | 65 - 85 |
We offer Slotted Channel in 40mmx150mmx40mm & 40mmx75mmx40mm with a given thickness of 1.8mm thick, 2mm thick & 2.5mm thickness, These Slotted Channels are mainly used in making long slotted angles frame work Racks, Heavy duty Mezzanine floors etc…
